Wave 300 Twin
HEDB 240 TWIN
Smart captain system

Estimated Energy Consumption: 3.75 kWh/km
Approximate Energy Equivalent: 320-Liter Gasoline

Outboard System
Battery
Smart Captain System
Charger

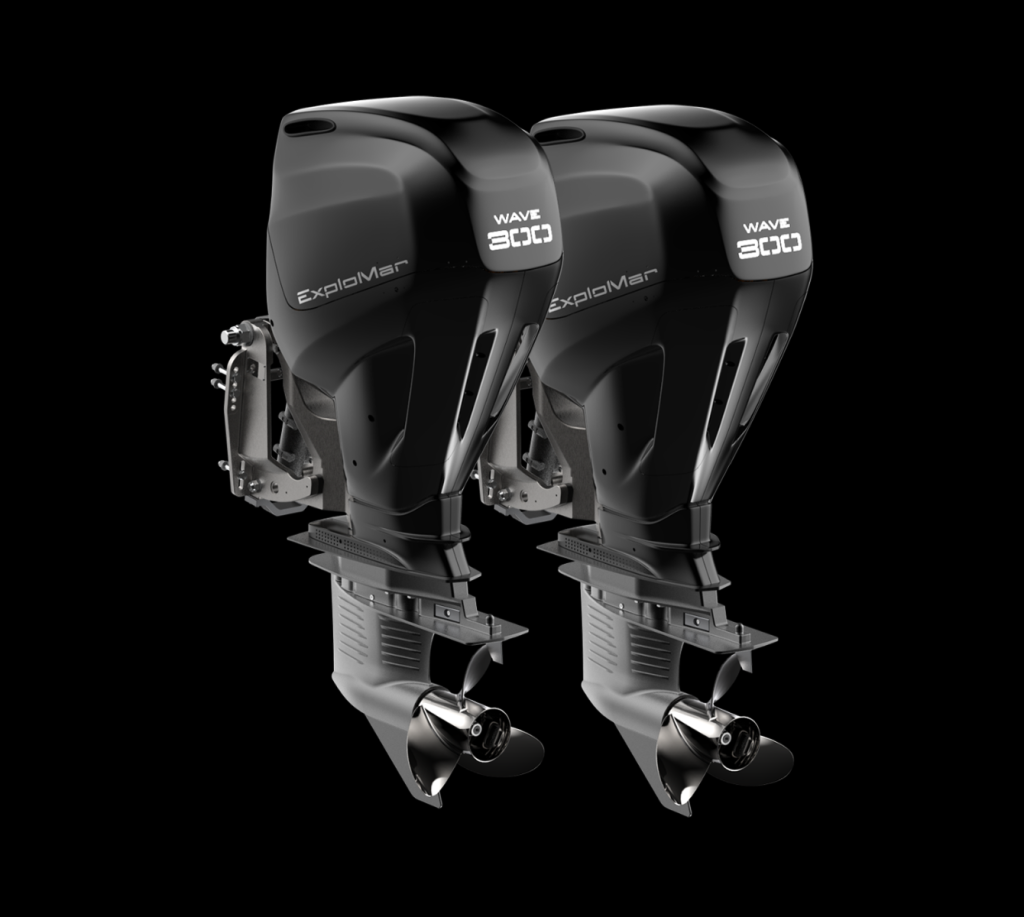

ELECTRIC OUTBOARD MOTOR

WAVE 300 TWIN

Peak Power

450kW

Continous Power

300kW

Weight

436kg (25'')

Reducer Efficiency

≥ 95%

Equipped with advanced Axial Flux Motor technology
Steer-by-wire and trim technology for precise control
High performnce no-clutch gearbox
Closed liquid cooling system

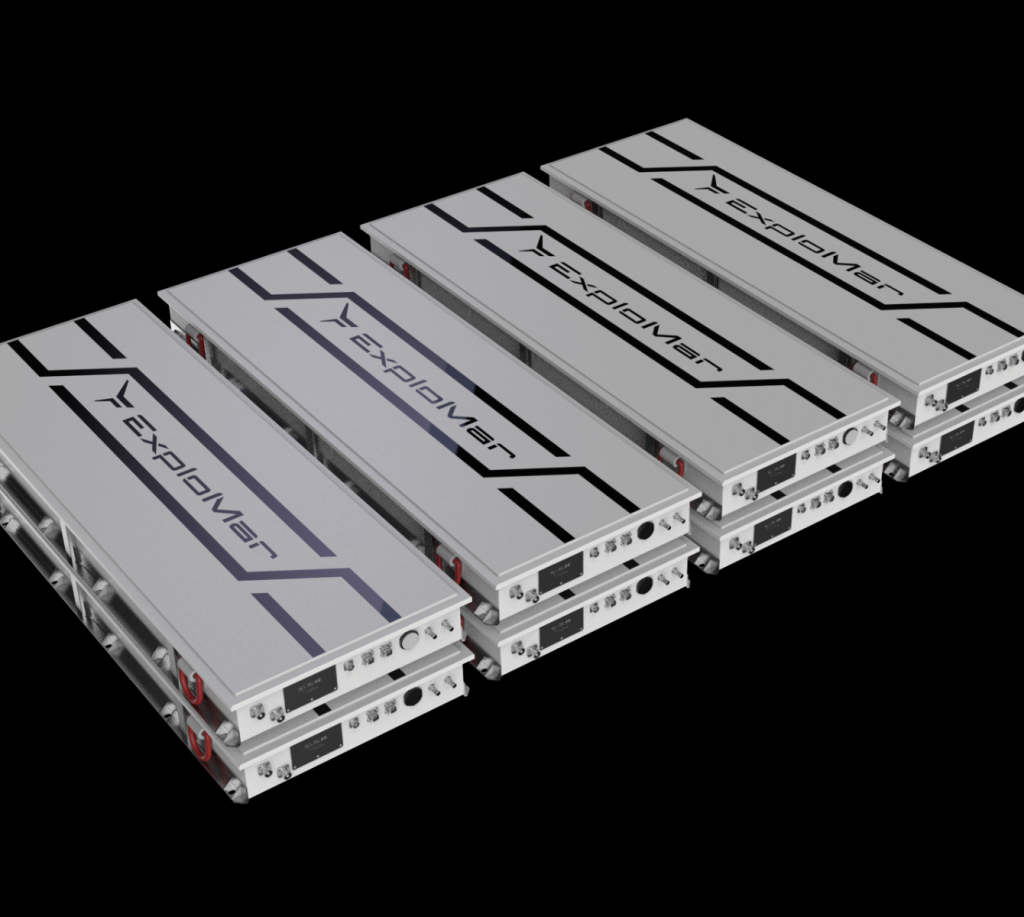

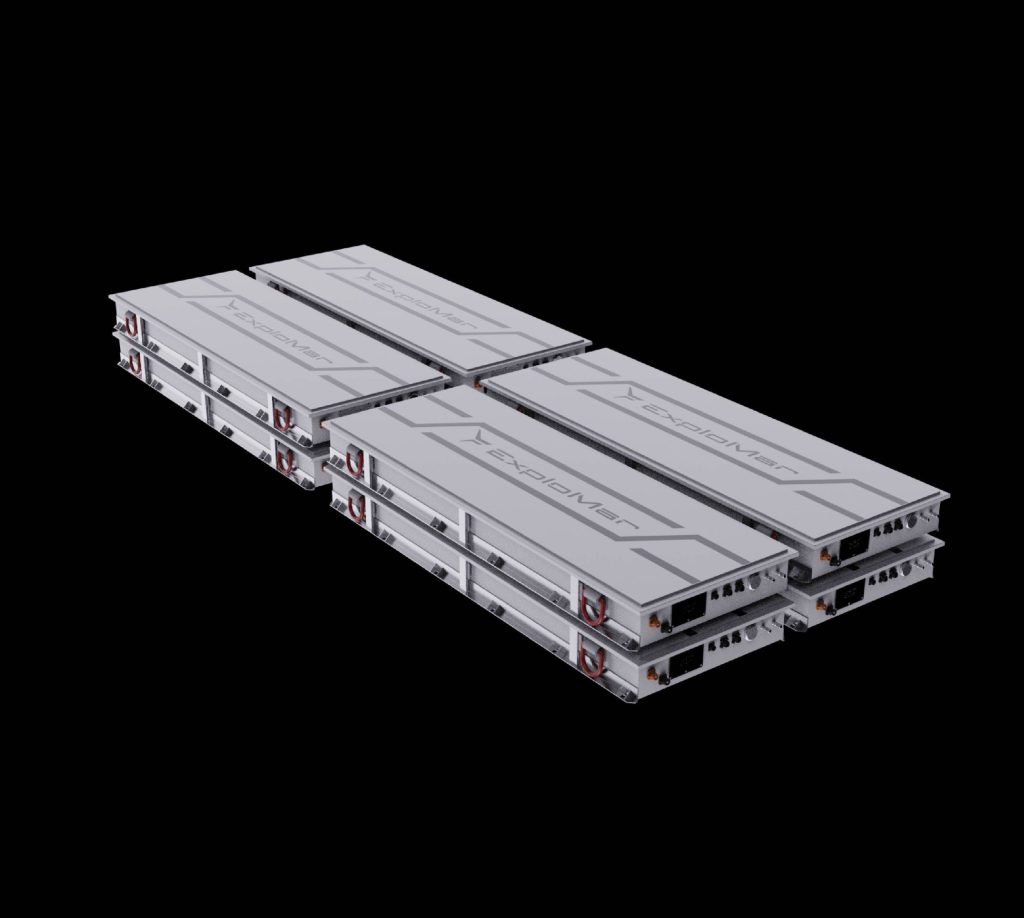

Semi Solid Battery
HEDB 240 TWIN

Weight

2,000kg

Capacity

480kwh

Pack density

240wh/kg

Design for easy layout

8 pack

0.5C charging
IP68 waterproof rating for ultimate durability
Battery cooling & heating temperature control

Smart Captain System

Control

CAN2.0b

Control box, steering wheel, IP67-rated 12-inch touchscreen included
High-speed driving direction protection
Intelligent torque management system

Charger

Portable charger

7KW

Input Voltage Range

230V±10%

Movable charger

40KW

Input Voltage Range

400V±10%

Dual-Gun Charging Station

120KW

Input Voltage Range

400V±10%

High performance outboard system

See our other products

600HP

8-12m/26-40ft boat

3.75kwh/km (*Estimated)

WAVE 300 TWIN
SI-90*4 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 600 hp
Battery : 360 kWh (90kWh*4)
Weight : 2,596 kg

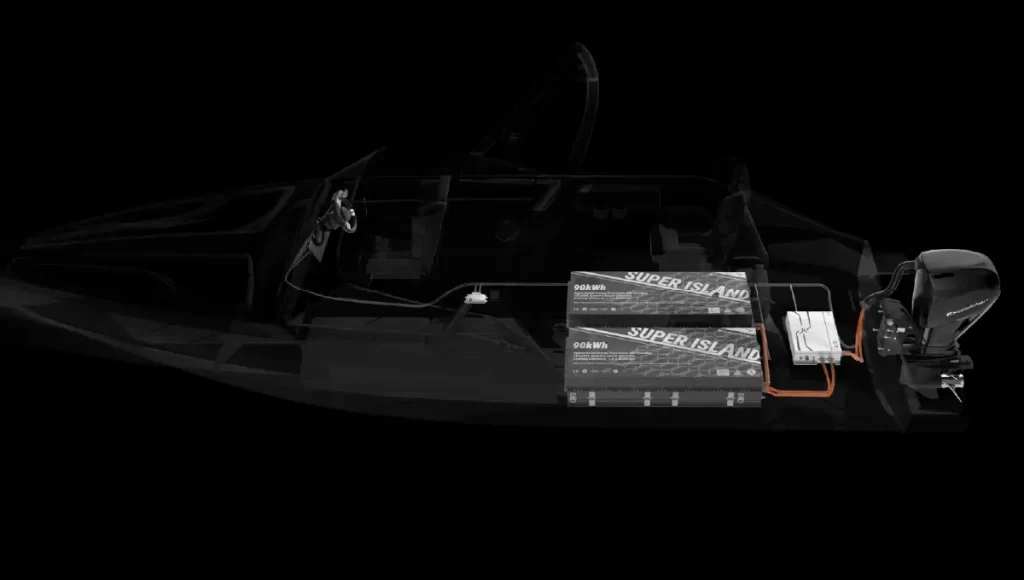

300HP

6-10m/19-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
SI-90*2 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 180 kWh
Weight : 1,298 kg

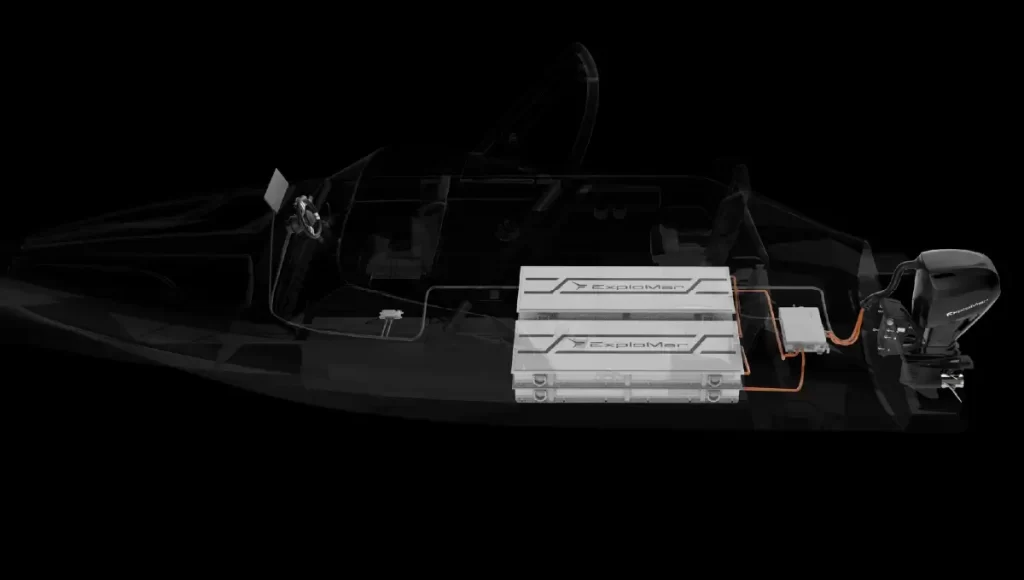

300HP

6-10m/26-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
HEDB 240-SEMI SOLID BATTERY
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 240 kWh
Weight : 1,218 kg

150+HP

6-8m/19-26ft boat

2kwh/km (*Estimated)

WAVE 150+
SI-90*2 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 200 hp
Battery : 180kWh (90kWh*2)
Weight : 1,284 kg

70+HP

4-8m/14-26ft boat

1kwh/km (*Estimated)

WAVE 70+
SI-60 / NMC CELLS
Control System

Power : 108 hp
Battery : 60 kWh
Weight : 440 kg
