WAVE 300 QUAD
SI-90*12
SMART CAPTAIN SYSTEM

Estimated Energy Consumption: 7.5 kWh/km
Approximate Energy Equivalent: 720-Liter Gasoline

Outboard System
Battery
Smart Captain System
Charger

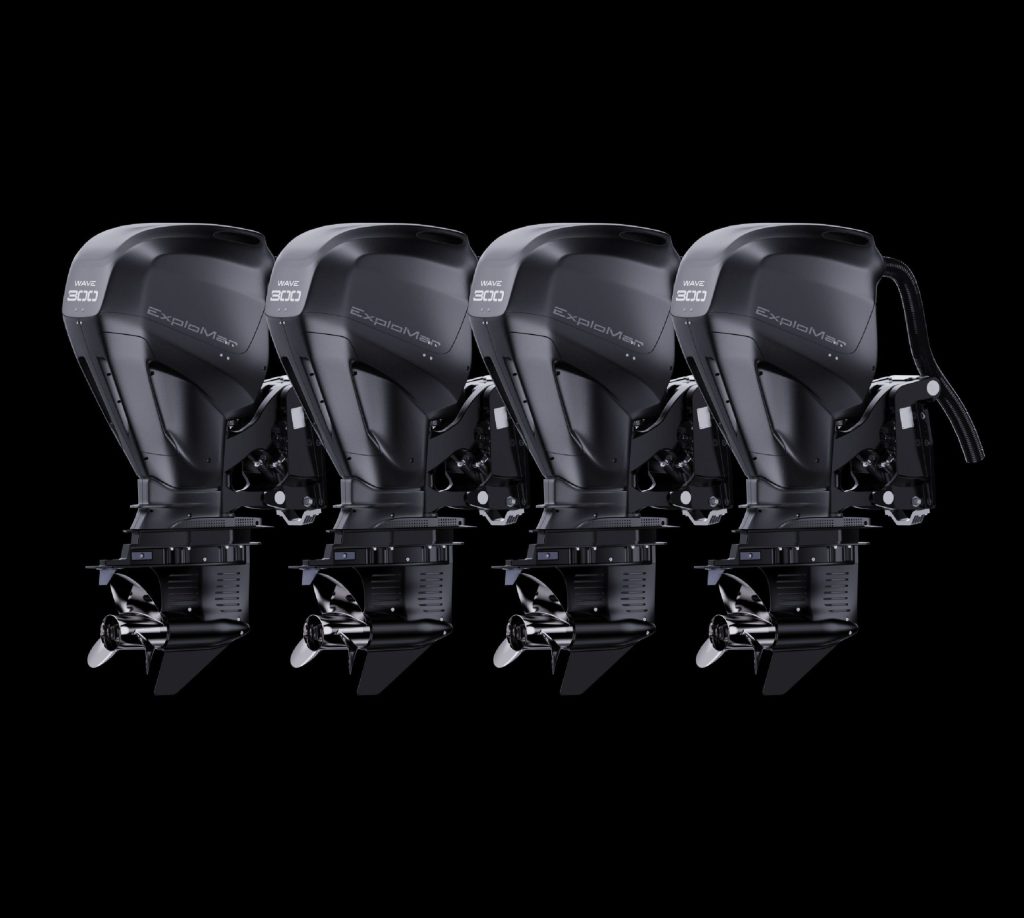

ELECTRIC OUTBOARD MOTOR
WAVE 300 QUAD

Peak Power

900kW

Continous Power

600kW

Weight

872kg (25'')

Reducer Efficiency

≥ 95%

Equipped with advanced Axial Flux Motor technology
Steer-by-wire and trim technology for precise control
High performnce no-clutch gearbox
Closed liquid cooling system

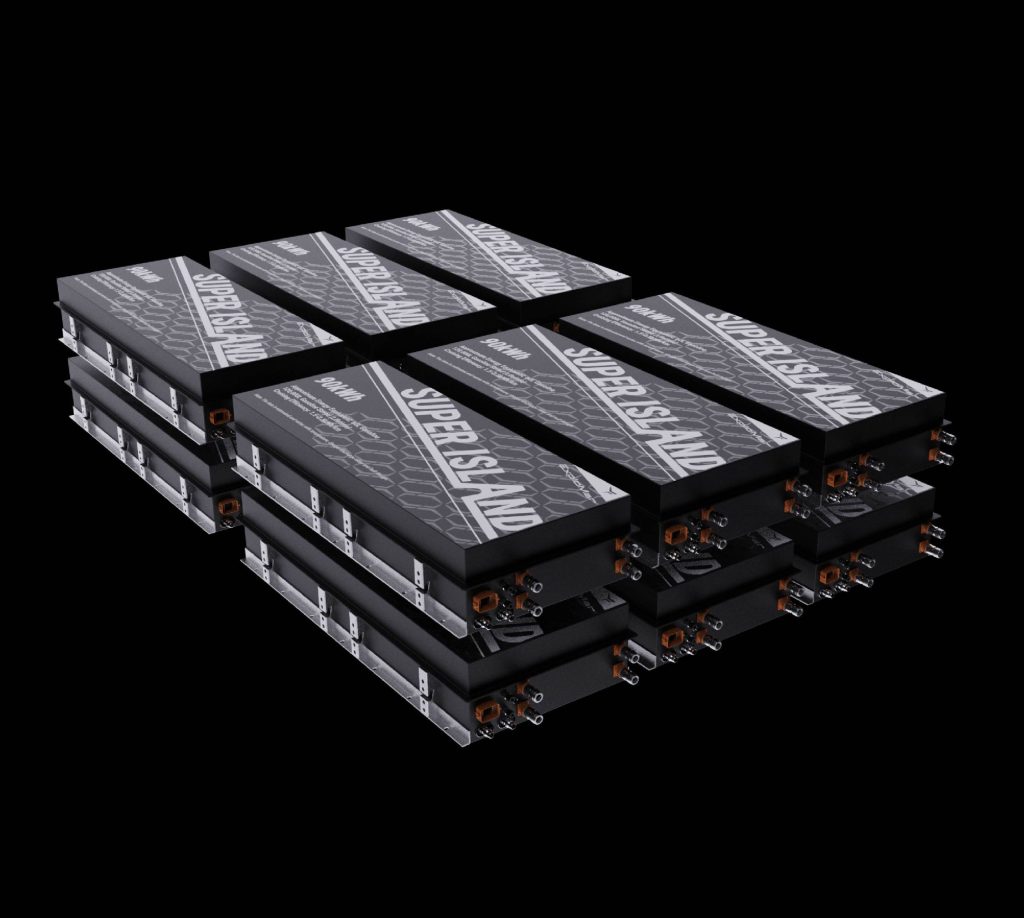

NMC BATTERY
SI-90*12

Weight

6,480kg

Capacity

1080kWh

Pack density

≥165Wh/kg

Robust power

540V

1C charging
IP67 waterproof rating for ultimate durability
Battery cooling & heating temperature control

Smart Captain System

Control

CAN2.0b

Control box, steering wheel, IP67-rated 12-inch touchscreen included
High-speed driving direction protection
Intelligent torque management system

Charger

Portable charger

7KW

Input Voltage Range

230V±10%

Movable charger

40KW

Input Voltage Range

400V±10%

Dual-Gun Charging Station

120KW

Input Voltage Range

400V±10%

High performance outboard system

See our other products

600HP

8-12m/26-40ft boat

3.75kwh/km (*Estimated)

WAVE 300 TWIN
SI-90*4 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 600 hp
Battery : 360 kWh (90kWh*4)
Weight : 2,596 kg

600HP

8-15m/26-49ft boat

3.75kwh/km (*Estimated)

WAVE 300 TWIN
SI-90*6 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 600 hp
Battery : 540 kWh (90 kWh*6)
Weight : 3,676 kg

600HP

8-15m/26-49ft boat

3.75kwh/km (*Estimated)

Wave 300 Twin
HEDB 240 TWIN – Semi solid battery
Smart captain system

Power : 600 hp
Battery : 480 kWh (240 kWh*2)
Weight : 2,436 kg

300HP

6-10m/19-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
SI-90*2 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 180 kWh
Weight : 1,298 kg

300HP

8-10m/26-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
SI-90*3 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 270 kWh
Weight : 1,838 kg
