WAVE 70+
SI-60
Control System

Estimated Energy Consumption: 1 kWh/km
Approximate Energy Equivalent: 40-Liter Gasoline

Outboard System
Battery
Control System
Charger

ELECTRIC OUTBOARD MOTOR
WAVE 70+

Peak Power

80kW

Continous Power

40kW

Weight

80kg (22.5'')

Control

Remote/tiller

X-pin flat-wire motor for lighter weight
High-performance gearbox
Closed liquid cooling system
Intelligent thermal management technology

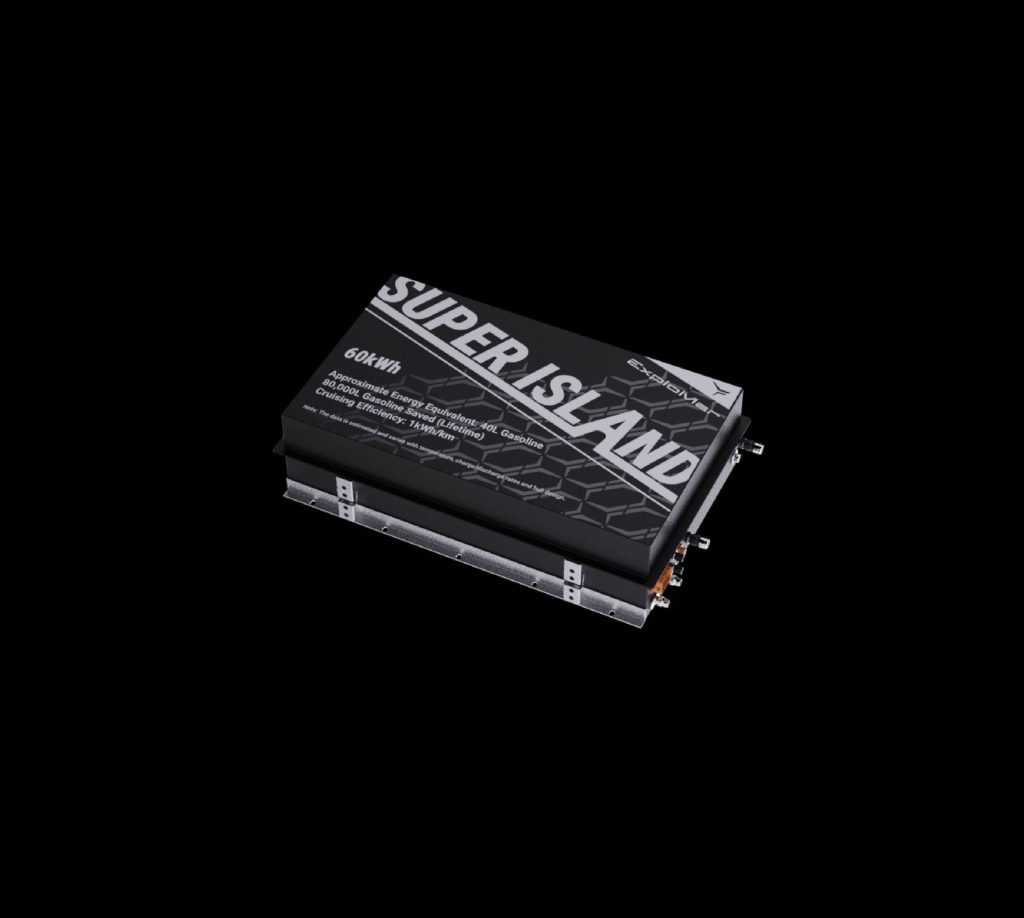

NMC BATTERY
SI-60

Weight

360kg

Capacity

60kWh

Pack density

≥165Wh/kg

Robust power

360V

Highly Integrated Battery PACK
1C charging
IP67 waterproof rating for ultimate durability
Battery cooling & heating temperature control

Control System

Control

CAN2.0b

Remote/Tiller control
IP67 high-brightness 5-inch touchscreen
Deep integration, simple and easy to use

Charger

Portable charger

7KW

Input Voltage Range

230V±10%

Movable charger

40KW

Input Voltage Range

400V±10%

High performance outboard system

See our other products

600HP

8-12m/26-40ft boat

3.75kwh/km (*Estimated)

WAVE 300 TWIN
SI-90*4 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 600 hp
Battery : 360 kWh (90kWh*4)
Weight : 2,596 kg

600HP

8-15m/26-49ft boat

3.75kwh/km (*Estimated)

WAVE 300 TWIN
SI-90*6 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 600 hp
Battery : 540 kWh (90 kWh*6)
Weight : 3,676 kg

600HP

8-15m/26-49ft boat

3.75kwh/km (*Estimated)

Wave 300 Twin
HEDB 240 TWIN – Semi solid battery
Smart captain system

Power : 600 hp
Battery : 480 kWh (240 kWh*2)
Weight : 2,436 kg

300HP

6-10m/19-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
SI-90*2 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 180 kWh
Weight : 1,298 kg

300HP

8-10m/26-32ft boat

2.5kwh/km (*Estimated)

WAVE 300
SI-90*3 / NMC CELLS
SMART CAPTAIN SYSTEM

Power : 300 hp
Battery : 270 kWh
Weight : 1,838 kg
